• White plate: Please create in K100%.
• Anti-aliasing, gradation, and translucency are not allowed.
• White plates cannot be adjusted for density, so transparency cannot be reproduced and a solid finish will result (see below).
• When creating a white plate with PSD (bitmap data), please use two shades of gray.
• (No problem if you submit ai (vector data) white plates.

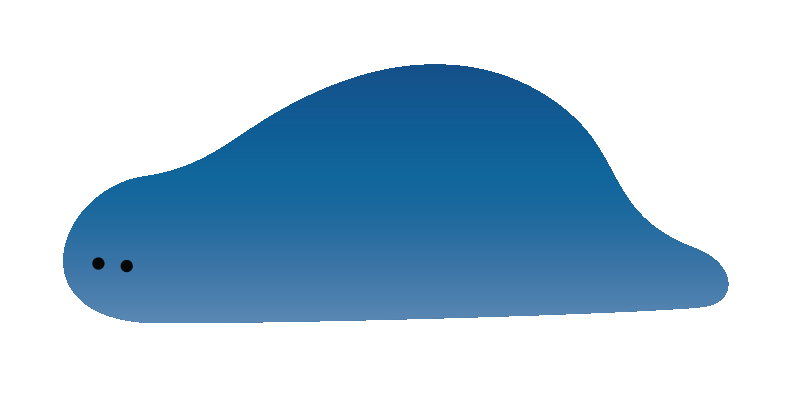

About background transparency processing

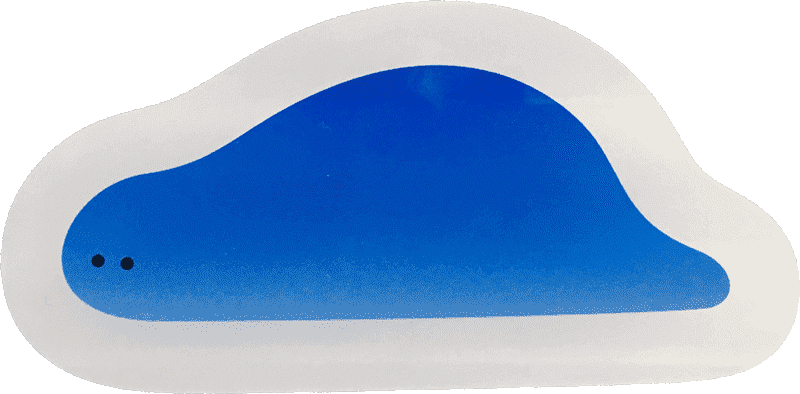

White version cannot reproduce transparency * White plates are not required for areas where a transparent finish is desired.

Transparent and blurred areas are printed clearly.

• Cut line: Line width 1pt, color k100% black
• Minimum 2.5mm is required between design and cutline
• Cutlines must have at least 5mm between cutlines
• Cutlines created with other than path data cannot be read, so please note that this is only a guideline.
• Please note that we will make adjustments if the cut lines do not meet the above requirements.
• Please create cut lines on the path layer when specifying cut lines in Photoshop.

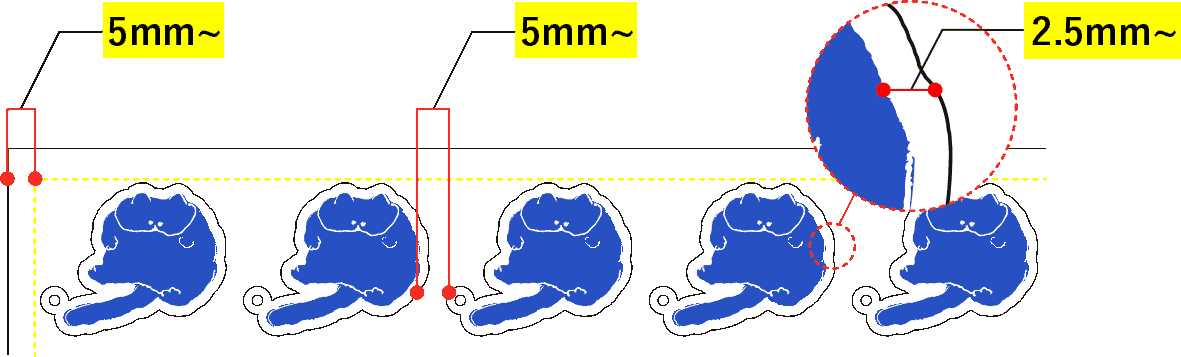

Notes on placement

• Art board
  A3 size, 5mm inside (W410mm x H287mm)
  Please place on
• From adjacent designs, including cut lines and hole positions
  5mm or more
  Please leave a margin of at least 5mm
• From design to cutline.
  At least 2.5mm
  Please leave a margin of at least 5mm

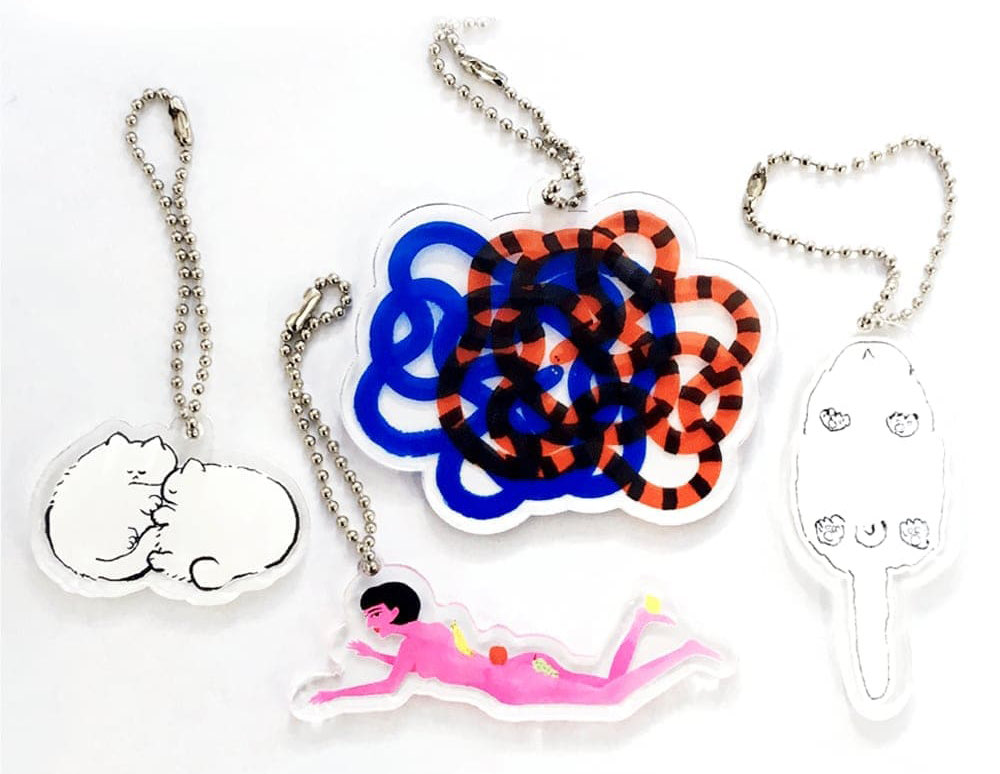

Regarding the hole in the ball chain

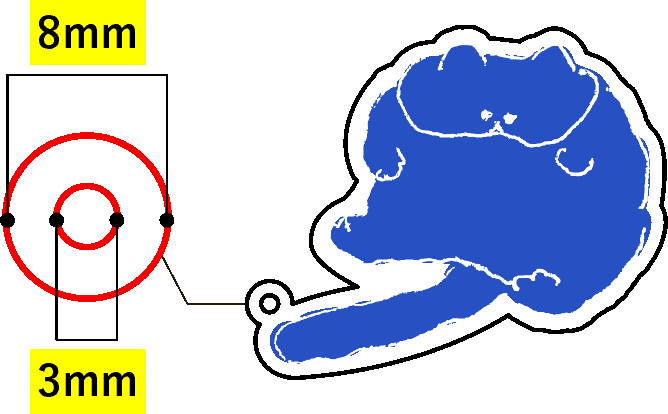

• Please make the hole for the ball chain with an inner diameter of 3 mm and an outer diameter of at least 8 mm.
• If not specified, we will adjust to the general position on the upper side of the design.

* Ball diameter is 2.4mm.

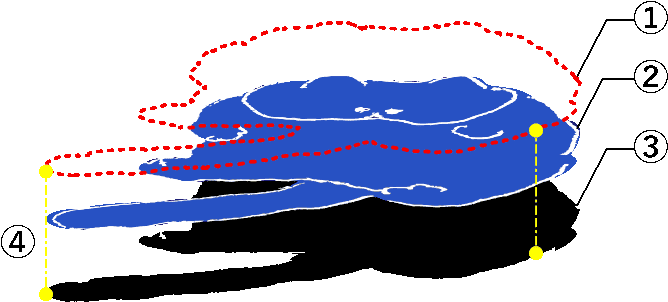

About Layer Structure

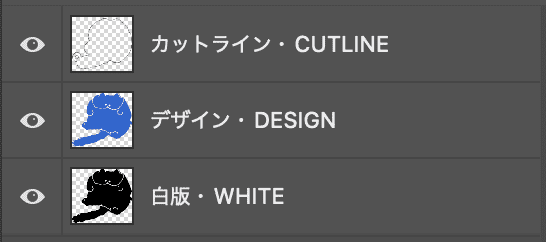

• Please submit your design in three layers: (1) Cut line, (2) Design, and (3) White plate.
• Please submit your image on separate layers, with the image (1) to (3) overlapped and the same size (4).

* When specifying cut lines in Photoshop, please create the cut lines on the path layer.

File contents to be prepared

• Layers of cut lines
• Layer of design version
• Layer of white version

(1) Cut line
(2) Design
(3) White plate
(4) Align and submit the data so that they overlap perfectly on the data.

• Separate each element by layer
• Please specify the position of the holes on the cutline layer.

Cut lines and white plates can be created by us.

You can also submit only the design and we will create the cut lines and white plates.

• The space between the design and the design should be at least 10 mm, assuming the position of the ball chain hole as well.
• Please specify the approximate position of the hole for the ball chain.
• The number and size of designs may need to be adjusted for production purposes.

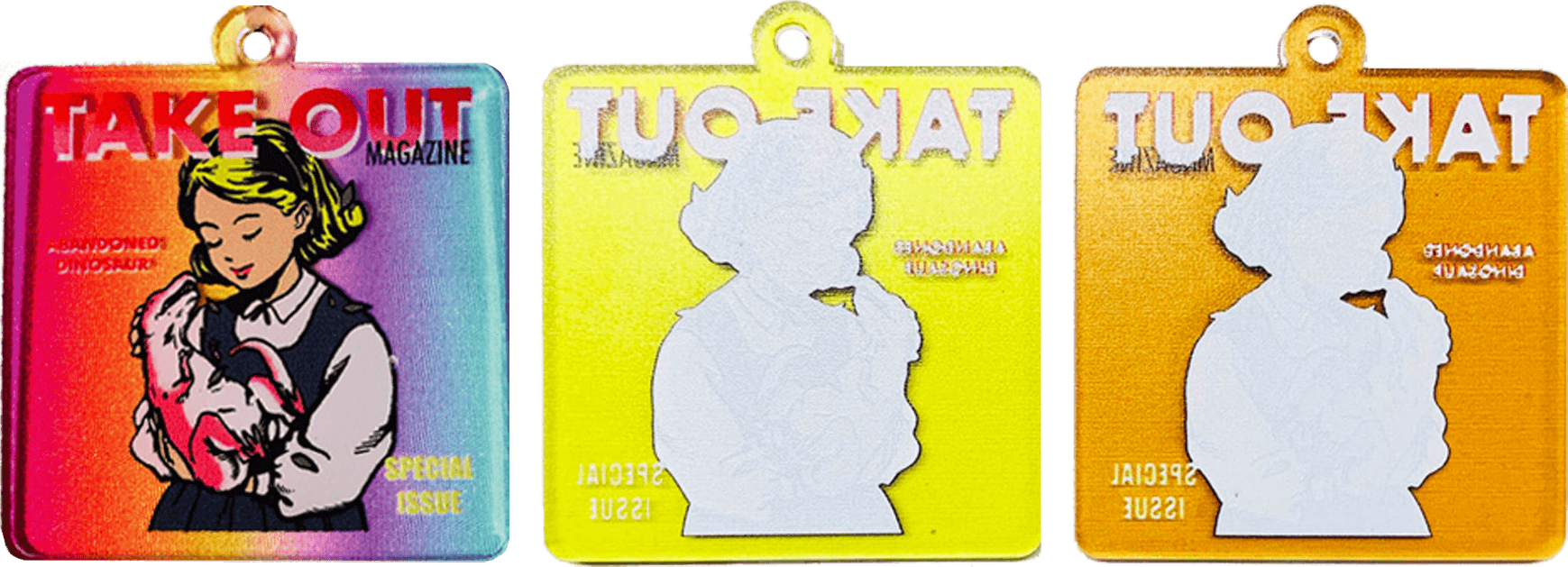

This is a borderless printing service that allows printing to the edge of the cut line.
Only clear color acrylic sheets are available, and items with transparent background color can be produced.

• Please prepare data for overprint version with a size of +2mm or more than the cut line when creating the data for submission.
  * We can also make the documents for you.
• Please note that white plates cannot be attached to overprinted plates.

File contents to be prepared

• Layers of cut lines
• Layer of design version
• Layer of white version
• Layer for overprints
• Layer for overprint

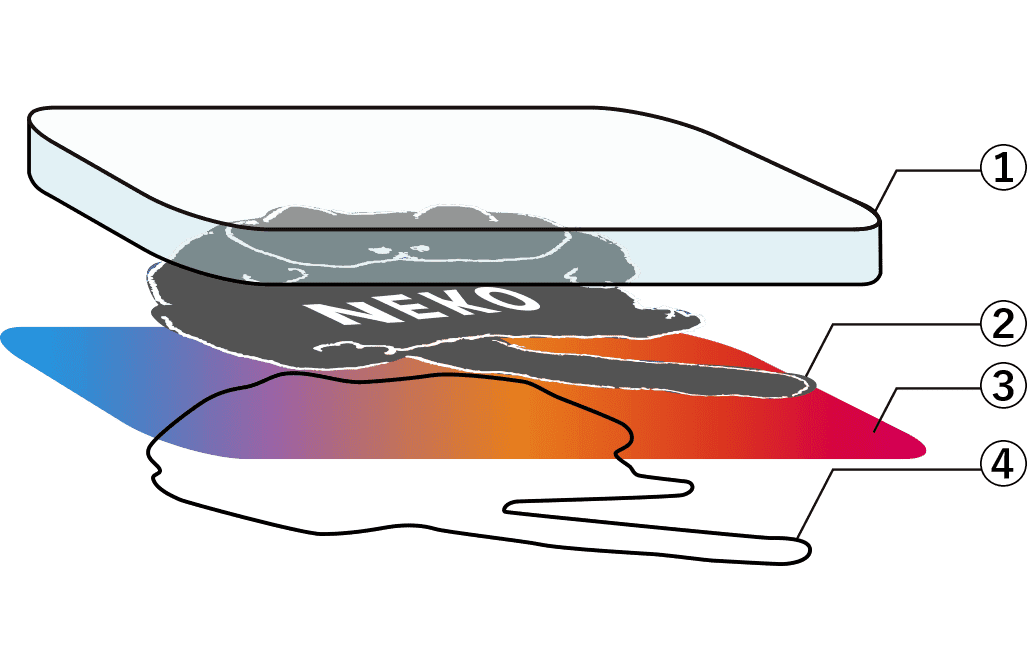

configuration

(1) Acrylic (Clear color only)
(2) Design version
(3) Overprint version
*White plates cannot be attached to overprinted plates
(4) White plate (for (2) design plate)

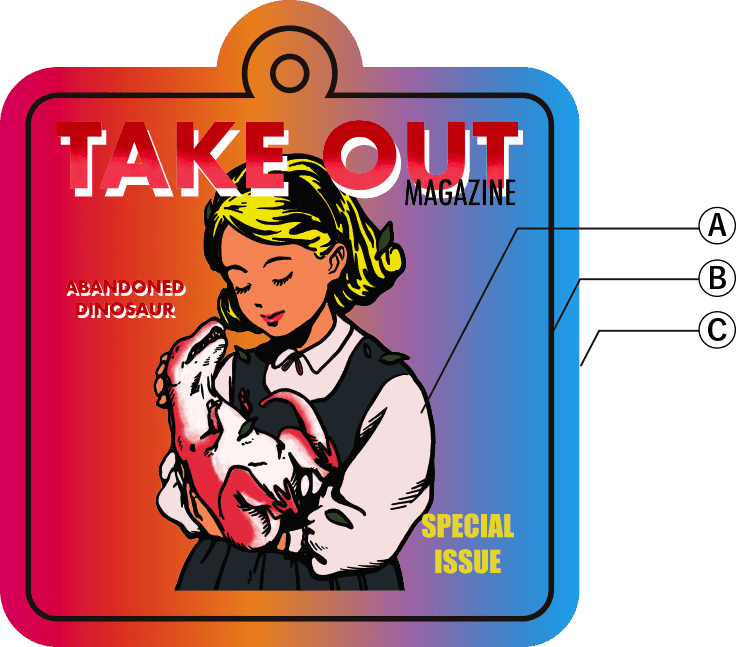

A. Design version
B. Finished cut line
C. Overprint version
Size +2mm from the cut line

finish

Normally, we offer two-layer printing (white plate + color printing), but only clear acrylic is available for an additional charge (A3/$14.4・その他/$14.4 ~), double-sided printing (3-layer printing) is also available (3 layers in the order of design plate/white plate/design plate on one side)

• Please create the design data so that the design on the front and back sides overlap exactly when they are reversed.
• Please make sure that the design data for the front and back sides overlap exactly when flipped over.
• Please make sure that text, logos, etc. are placed in such a way that they are readable when viewed from each side, and that they are carefully inverted.
• Please make sure that the design overlaps exactly when the design is reversed.
• Due to the nature of printers, the print on the

File contents to be prepared

• Layers of cut lines
• Layer of design version (front)
• Layer of white version
• Layer for the white version
• Layer of design version (back)

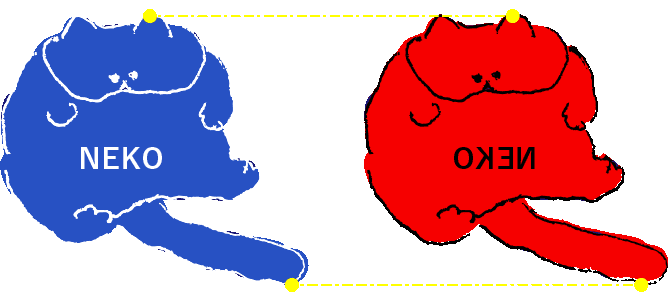

Submission Data

front

back

• so that the front and back sides overlap exactly when the reverse side is flipped.
• Separate layers for the front and back in the same data
• Text elements should be readable when viewed from each side

The reverse side of the data should be mirrored when the data is submitted.

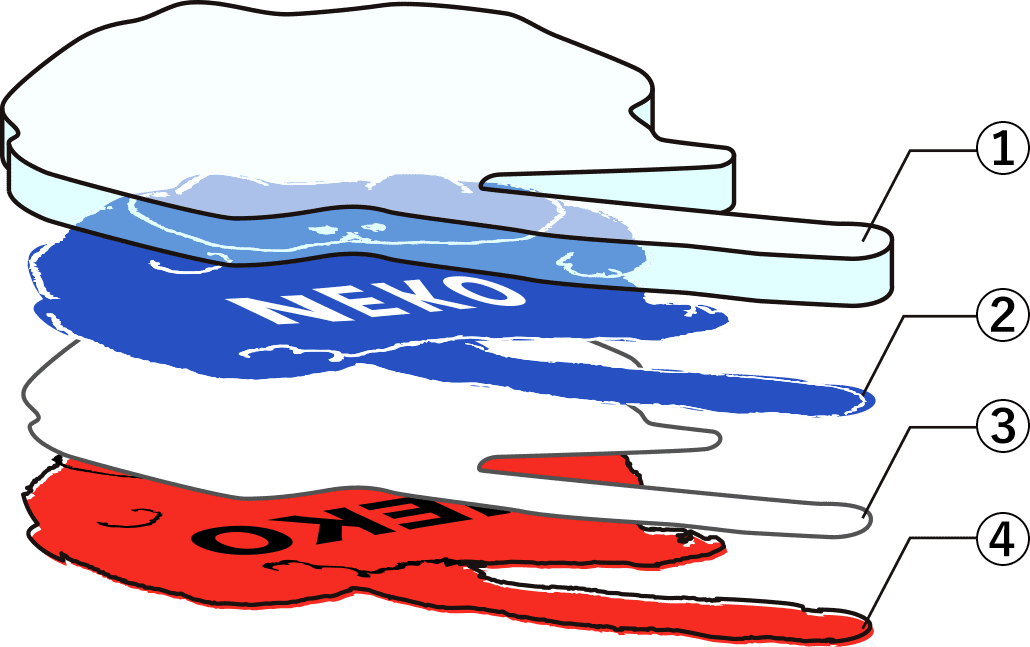

configuration

(1) Acrylic * The side visible through the acrylic is the front side.
(2) Design surface
(3) White plate
(4) Back side of design

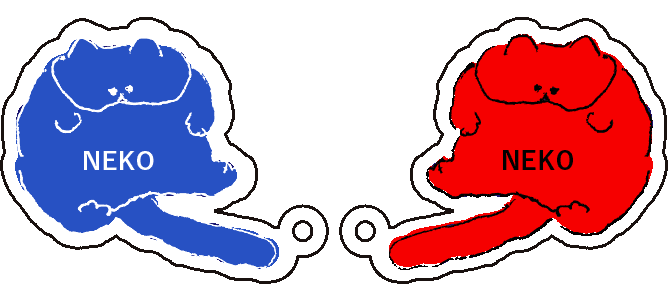

completion

front

back

The design on the reverse side will be reversed from the time of submission.

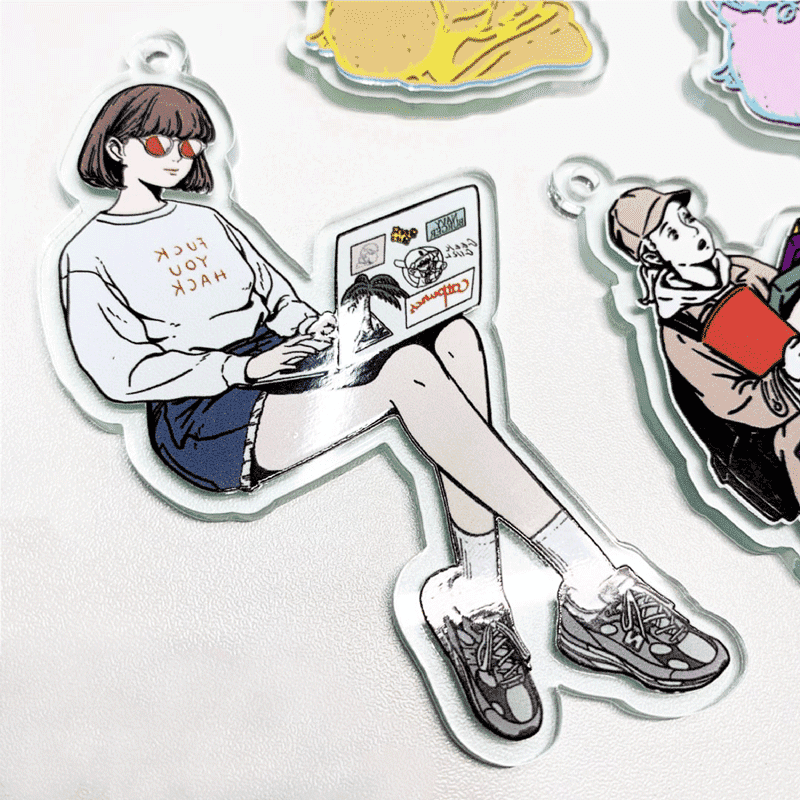

It can express gloss and luster on prints.
If there is no specification, we will process to cover the entire design. If you specify the area to be glossed, please prepare a layer of gloss version.

• Normally, clear acrylic is printed from the reverse side, but in the case of gloss processing, even clear acrylic is printed from the front side.
• In case of double-sided printing, the design plate on the front, the white plate and the back are printed.
• In the case of double-sided printing, the printing is done in the following order: (1) design plate on the front, (2) white plate, (3) design plate on the back, and (4) gloss plate. Therefore, the finished product will be gloss printed on the reverse side.

File contents to be prepared

• Gloss version layer
• Layer of cutlines
• Layer of design version (front/back)
• White layer

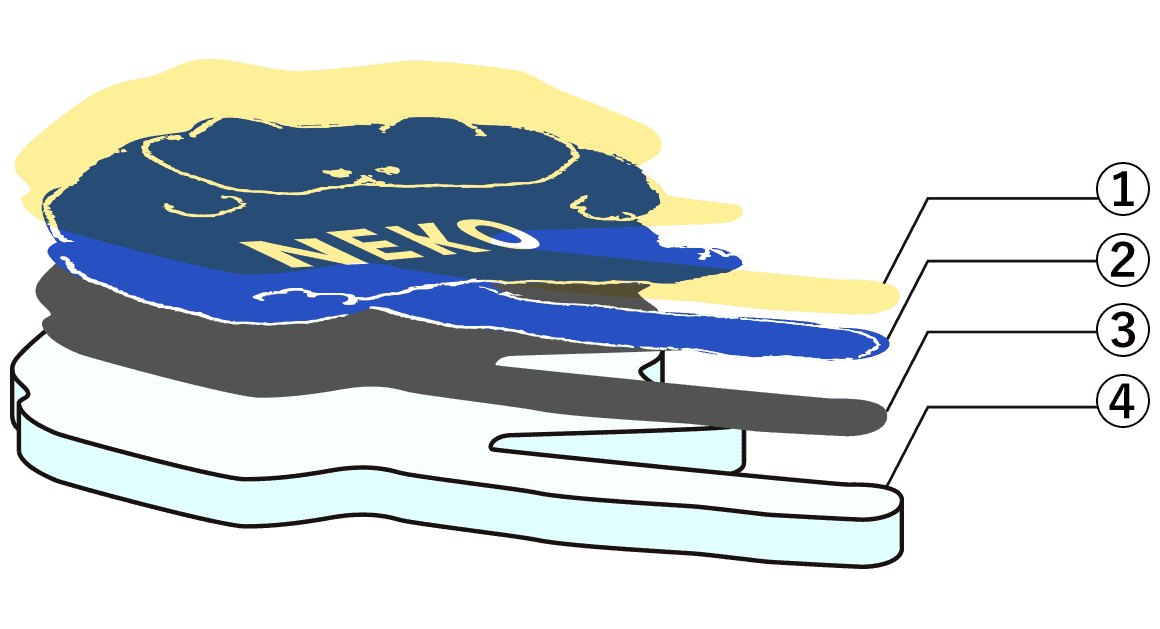

one-sided print

(1) Gross
(2) Design Edition
(3) White version
(4) Acrylic plate

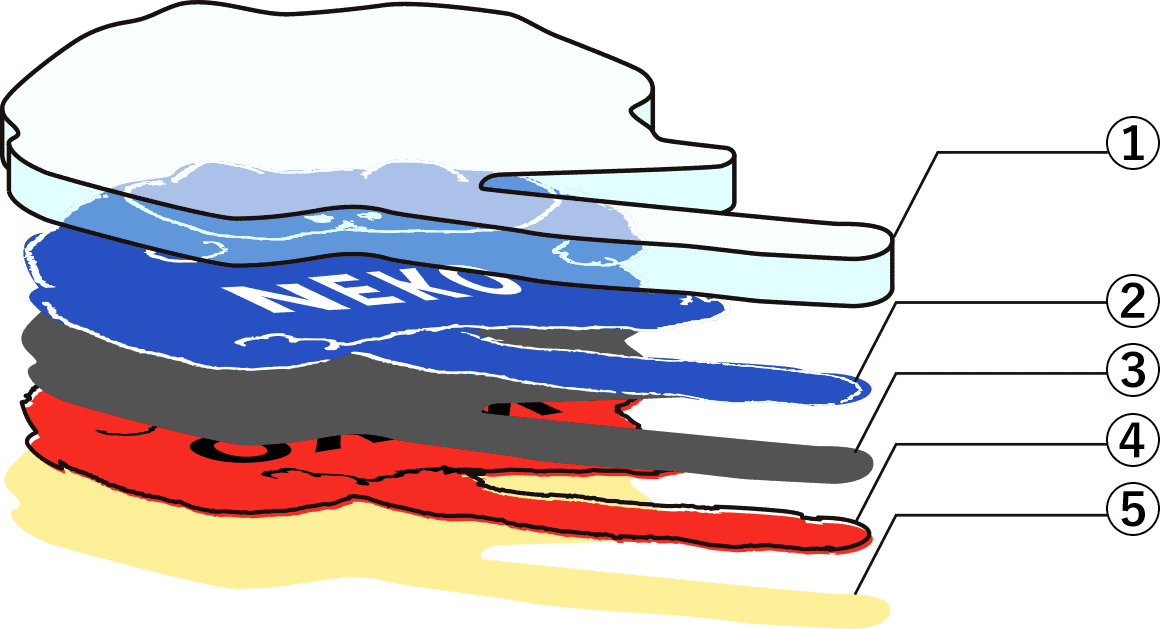

double-sided print

(1) Acrylic sheet
(2) Design plate (front)
(3) White plate
(4) Design version (back)
(5) Gloss

finish

Prints will be glossy.

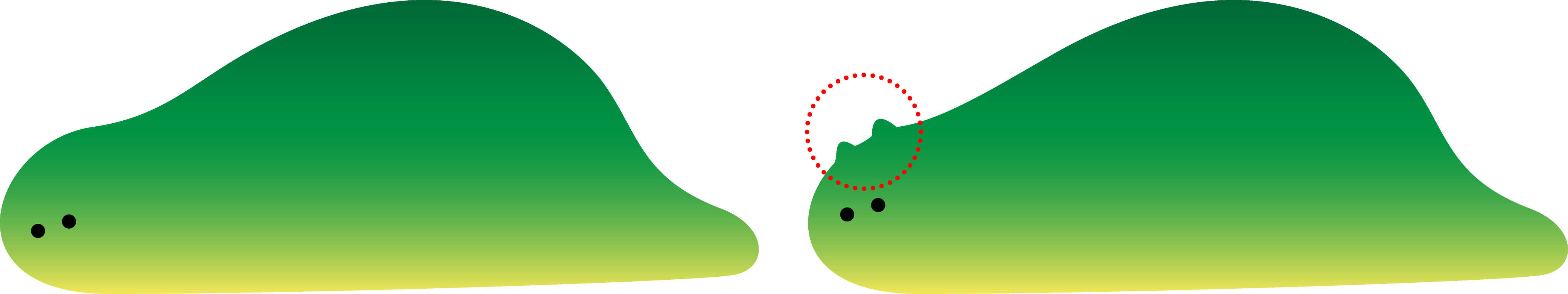

Acrylic key ring (free-cut within A3 size) や Full color sticker (free within A4 range) In the case of a product with multiple designs in one product, such as a “POP”, please share your design with us when you submit your data or place your order in order to prevent design mix-ups during production and inspection when similar designs are included in a design. In order to prevent design mix-ups during production and inspection, please share this information with us when you submit your data or place your order.

• Please note that the cut line may deviate by up to 1mm.
• For A3 free cutting, we may need to consult with you about adjustments if the design is packed to the very edge, as it is easy for the cut to be misaligned.
• We cannot finish without a margin between the material and the printed side due to the possibility of the print peeling off during the cutting process.
• Clear only is printed on the reverse side, other colors are printed on the front side.

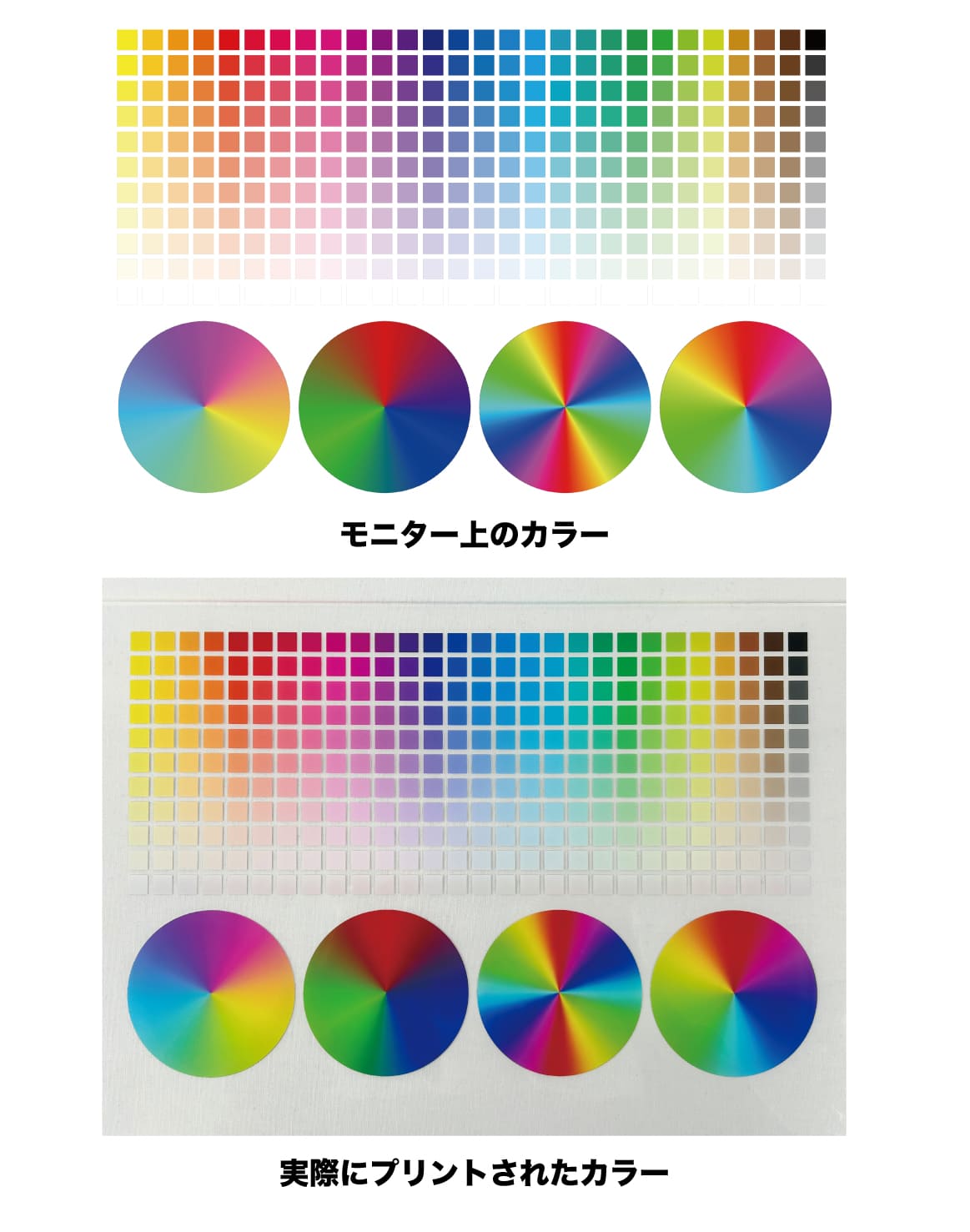

• No special colors such as gold, silver, fluorescent, etc. are available. Printing will be done in colors similar to those in the submitted data, and colors will be printed lighter than those on the screen.
• Click here (GoogleDrive) to see a sample of output to acrylic board.
• Special plates are made by laminating aurora and hologram films.
